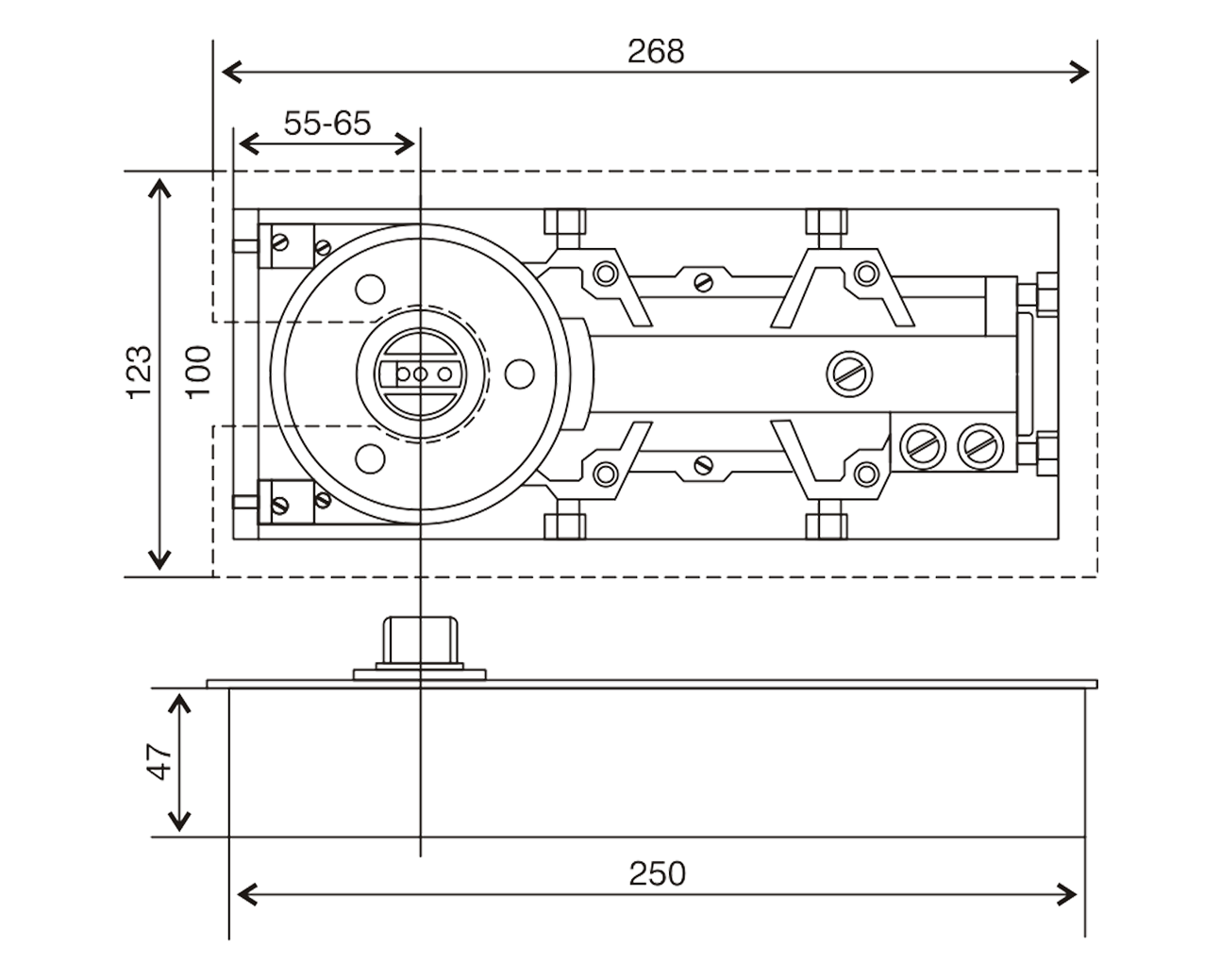

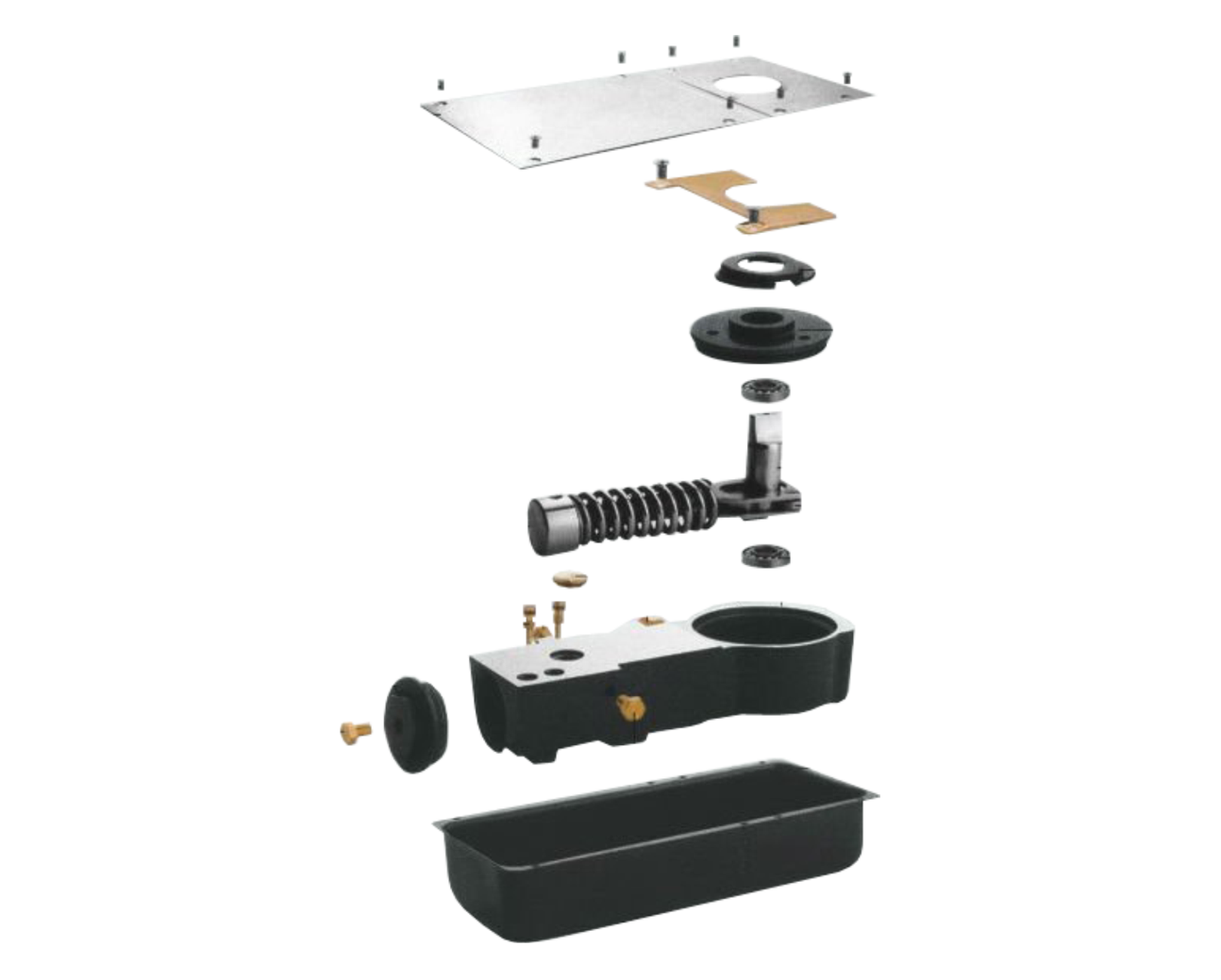

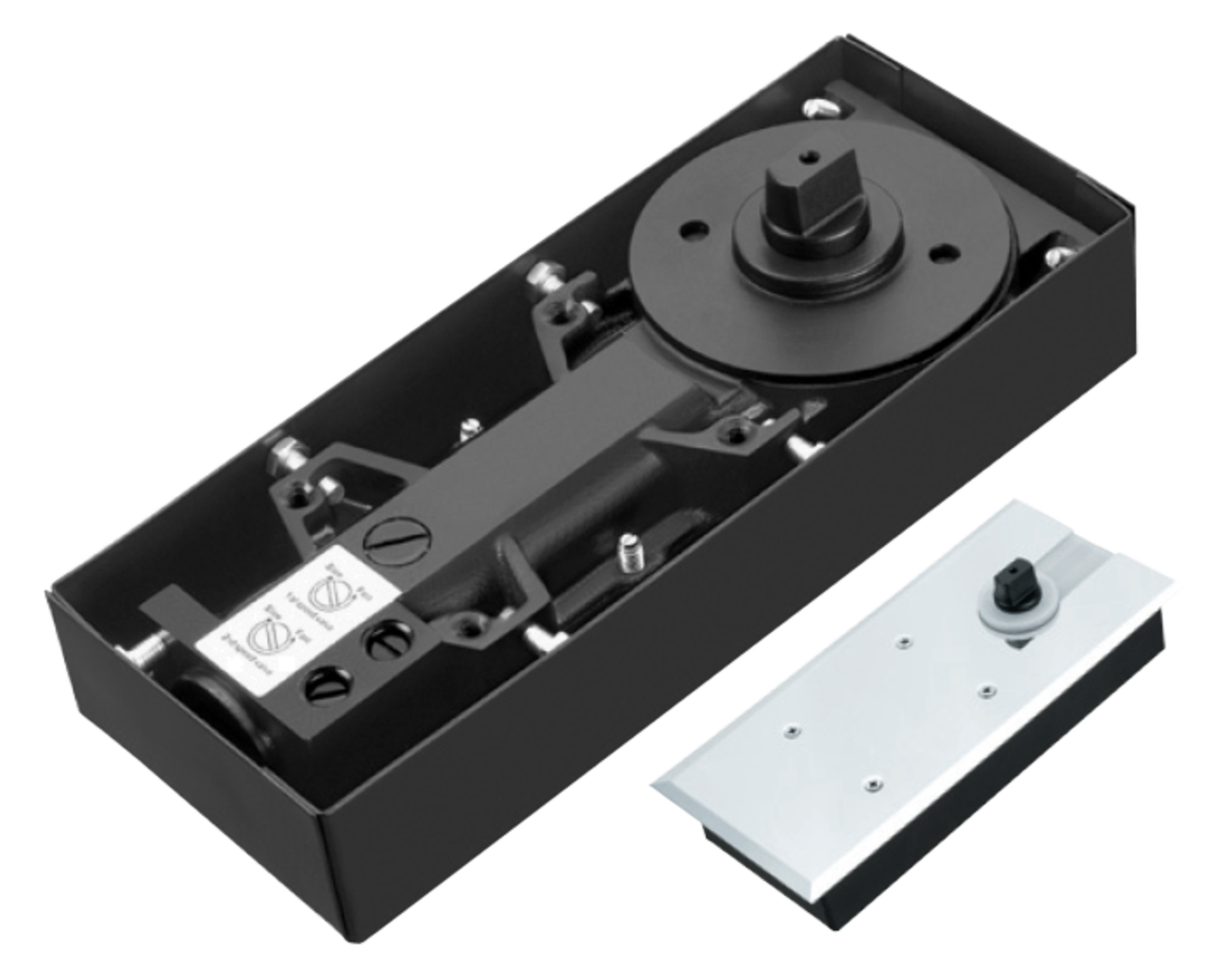

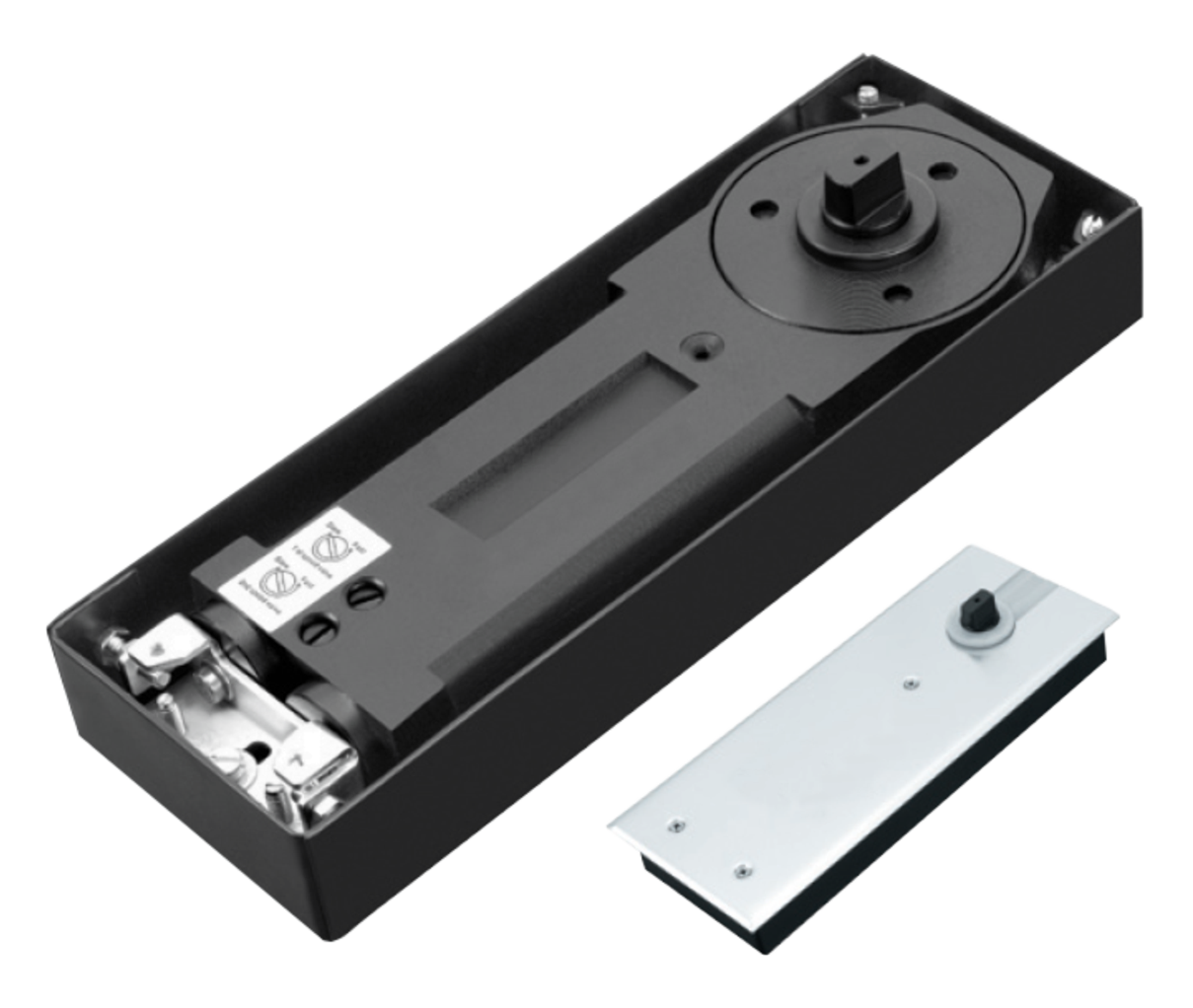

Adjustable SPINDLE Floor Spring (BFS-500)
SINGLE Cylinder FLOOR SPRING MACHINE
Product Size :
- Cement Box Size : 250 x 100 x 47 mm.
- Cover Size : 268 x 123 mm.
- Front & Back Adjust ± 5 mm.
- Material : Stainless Steel SS 304.
- Available in Matte & Glossy Finish
- Available in 4 PCS.
Performance Specifications :
- Capacity : 60Kg / 80Kg
- Door Width : 1000 mm
- Maximum Closing Time - 46s
- Minimum Closing Time - 3s
- Max Open Degree 105°
- 90° HO or NHO
- Two Section Speed Value
- Closing Speed 90° - 25°
- Latching Speed 25° - 0°
- Item Code : BFS - 500 (BFS -500 Attachment for Wooden & Aluminium Doors)

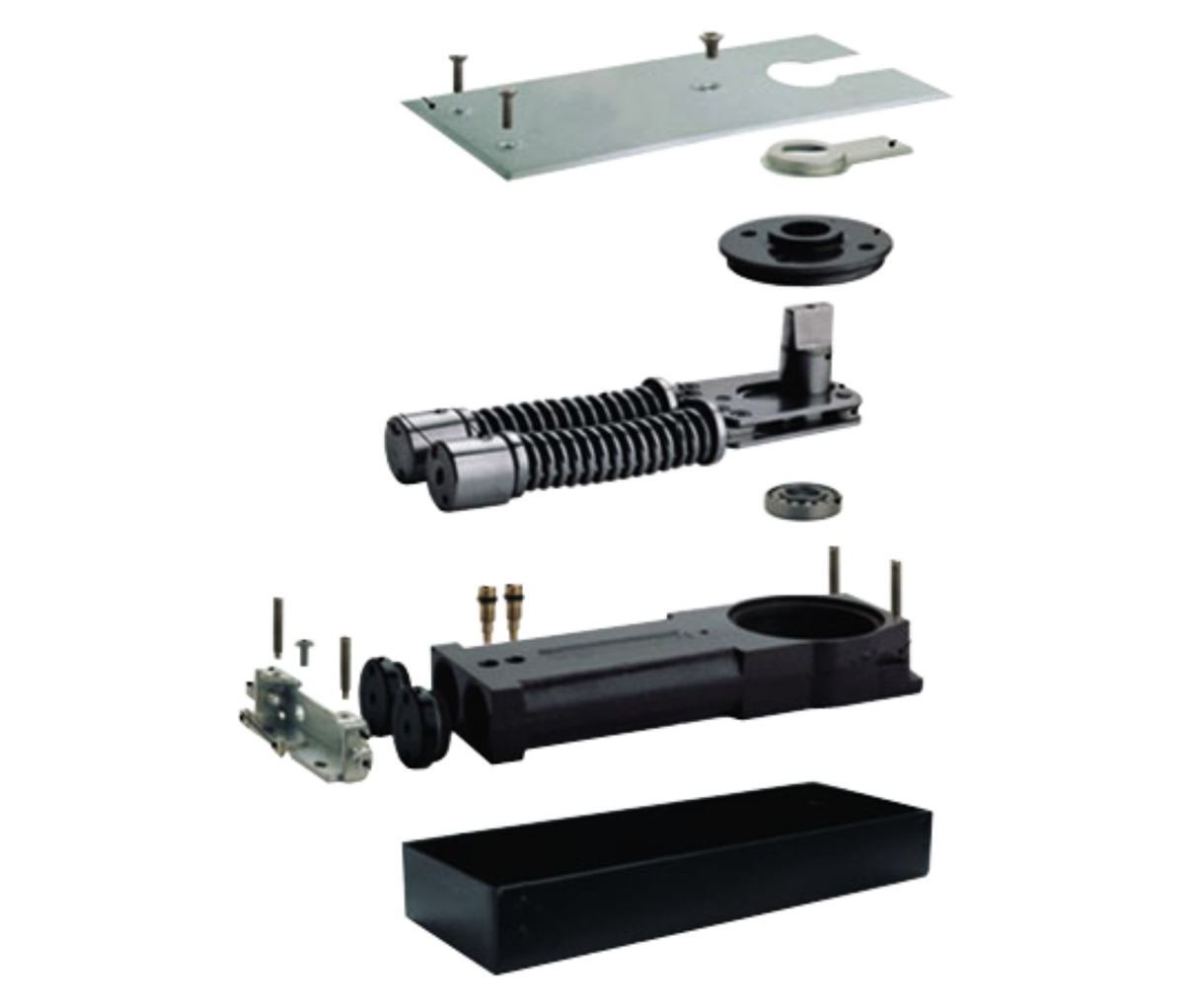

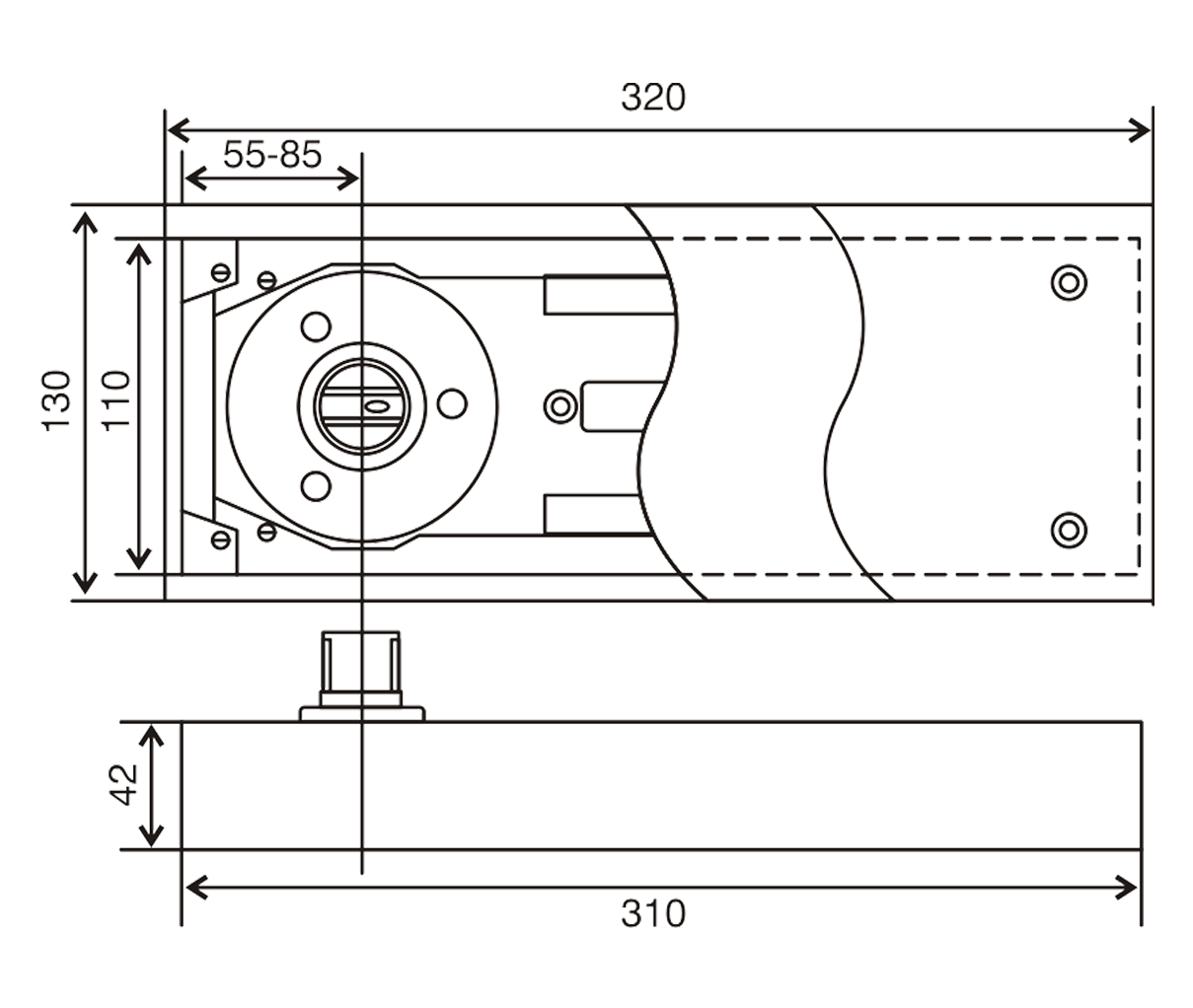

Adjustable SPINDLE Floor Spring (BFS-833)
DOUBLE Cylinder FLOOR SPRING MACHINE
Applications :
- Cement Box Size : 310 x 110 x 42 mm.
- Cover Size : 320 x 130 mm.
- Front & Back Adjust ± 5 mm.
- Material : Stainless Steel SS 304.
- Available in Matte & Glossy Finish
- Available in 4 PCS.
Specifications :
- Capacity : 130Kg / 100Kg
- Door Width : 1300mm / 1000 mm
- Maximum Closing Time - 46s
- Minimum Closing Time - 3s

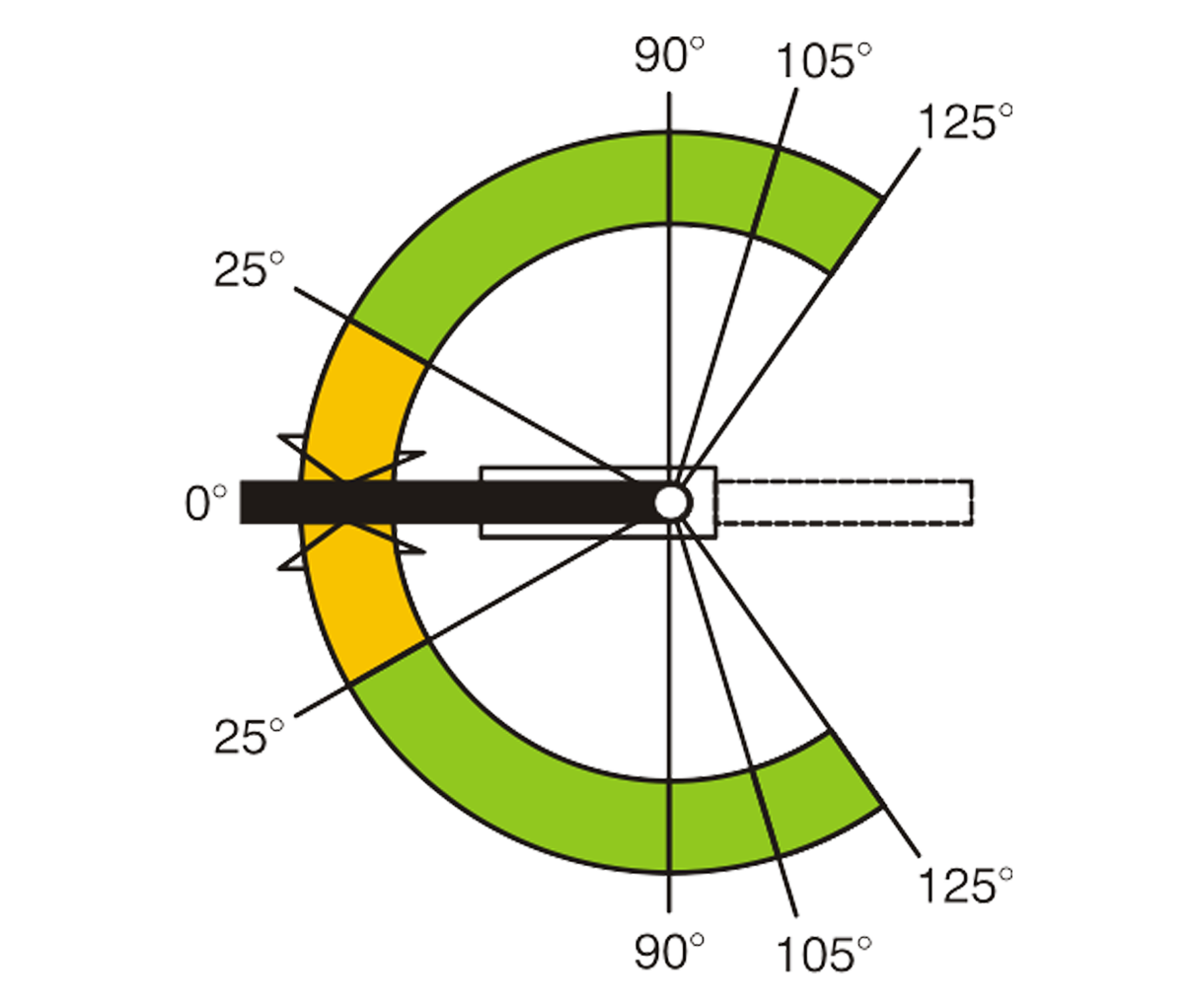

- Max Open Degree 105° or 125°
- 90° HO or NHO
- Two Section Speed Value
- Closing Speed 90° - 25°
- Latching Speed 25° - 0°
- Item Code : BFS - 833

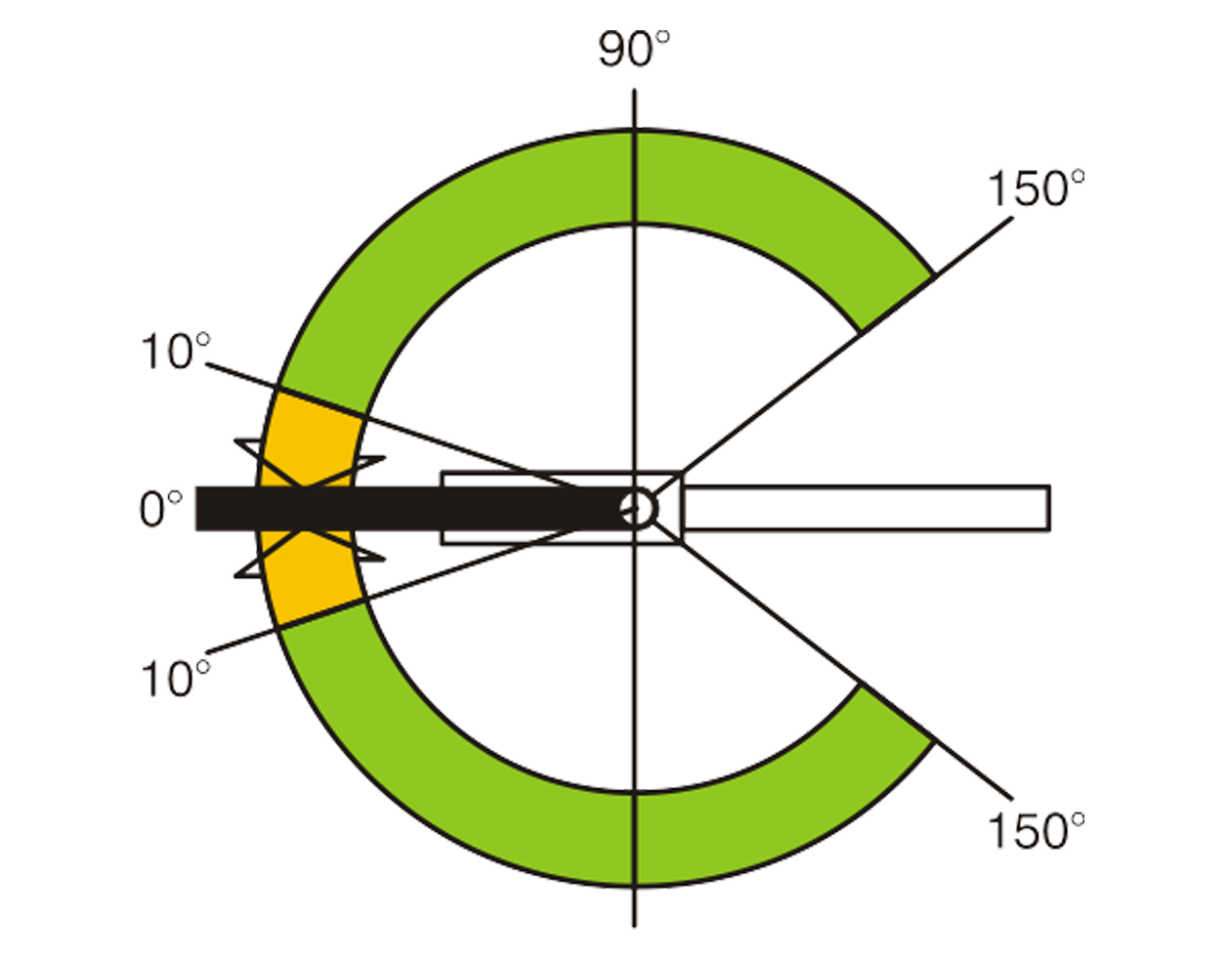

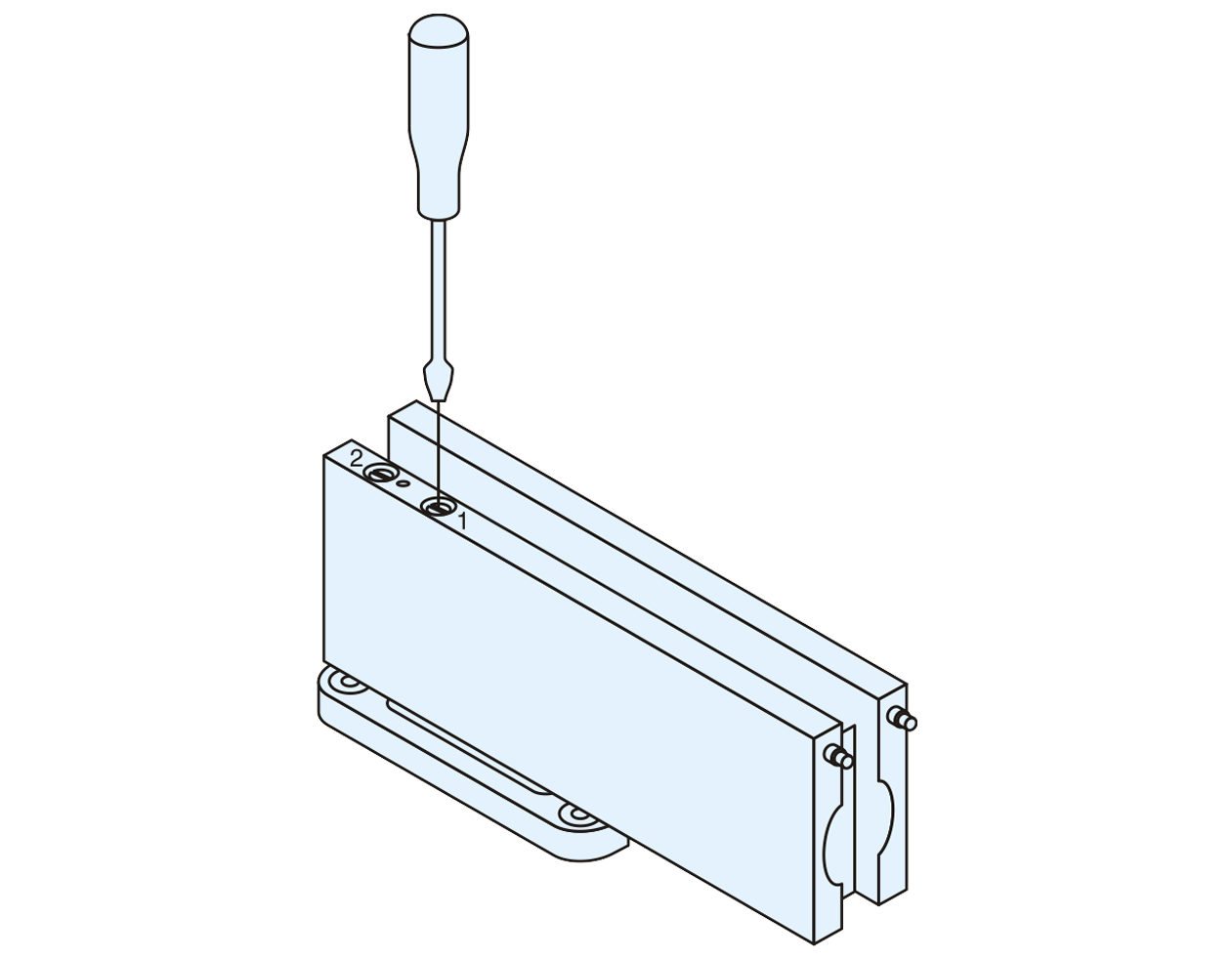

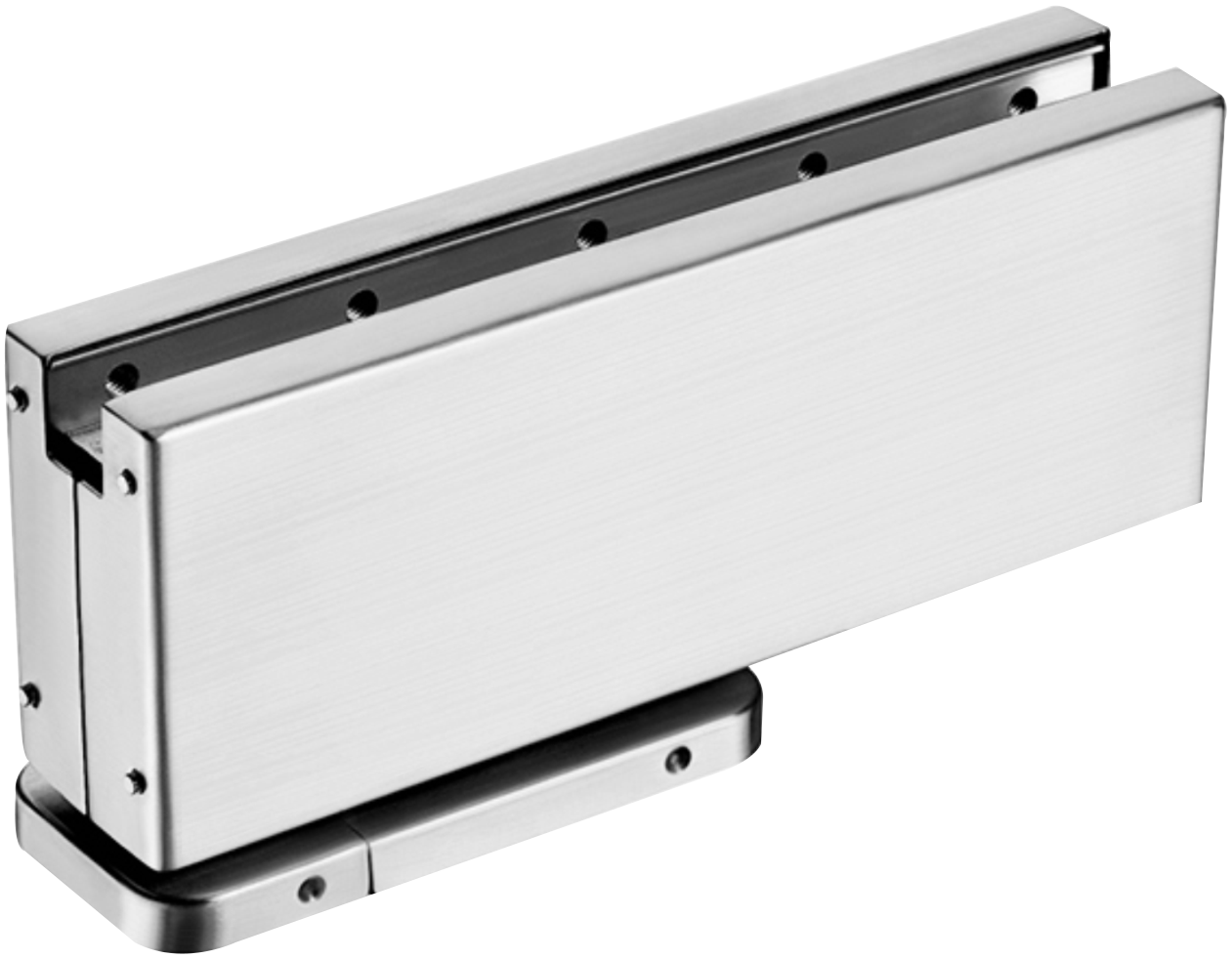

Non - Digging New Floor Hinge (BFS - 67)
Product Size :
- Glass Thickness - 8mm to 13mm
- Door Width - 1000mm Max
- Capacity-100-150 KG
- Available in Matte & Glass FInish
Performance Specifications :
- Max Open Degree 150°
- 90° HO or NHO
- Two Section Speed Value
- Closing Speed 90° - 10°
- Latching Speed 10° - 0°
- 100 Kg. Weight Capacity
- Item Code : BFS - 67
Top Patch (BPF 02)
Applications :
- Secure on to the Bottom of the door Leaf to Accept the Spindle of BTX Floor Springs.
- Available in 20 PCS. Set
Specifications :
- Variable pivot point of 55 or 65mm.
- With SS 304 cover of 1mm thickness.
- Cover secured with L - Key.
- Ensures that the cover is secure in its place.
- It is used for 8 - 10mm. glasses.
- Finish : SSS
- Material : Stainless Steel 304
- Item Code : BPF - 02

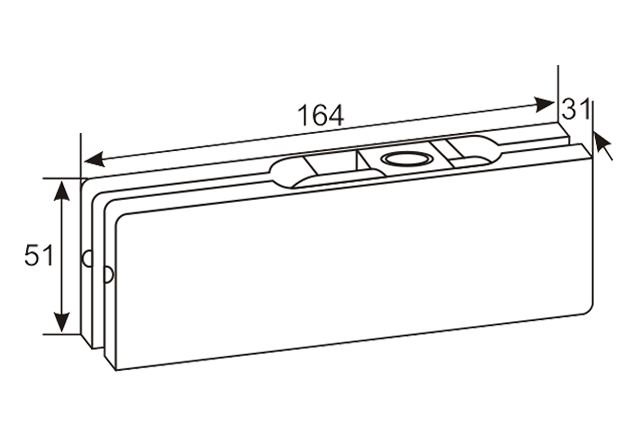

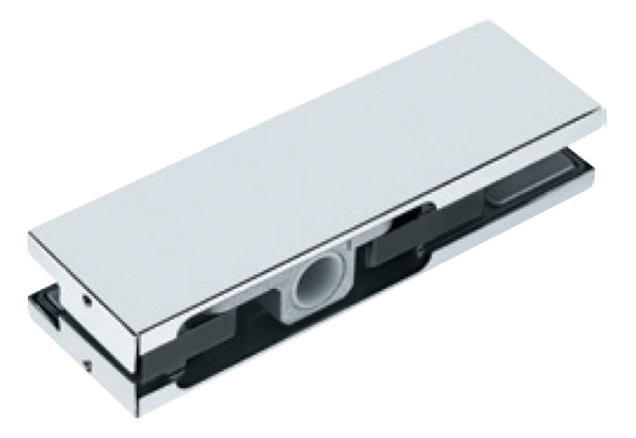

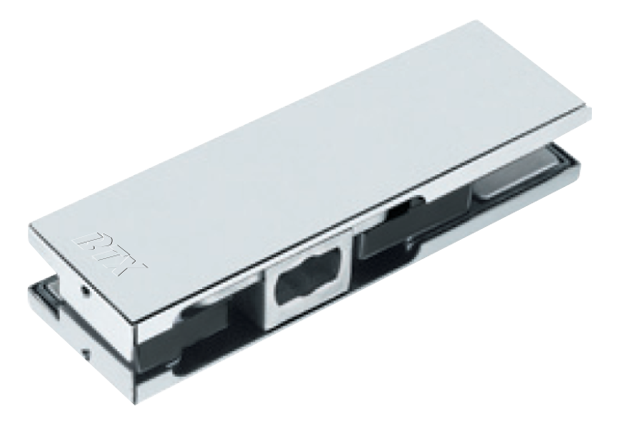

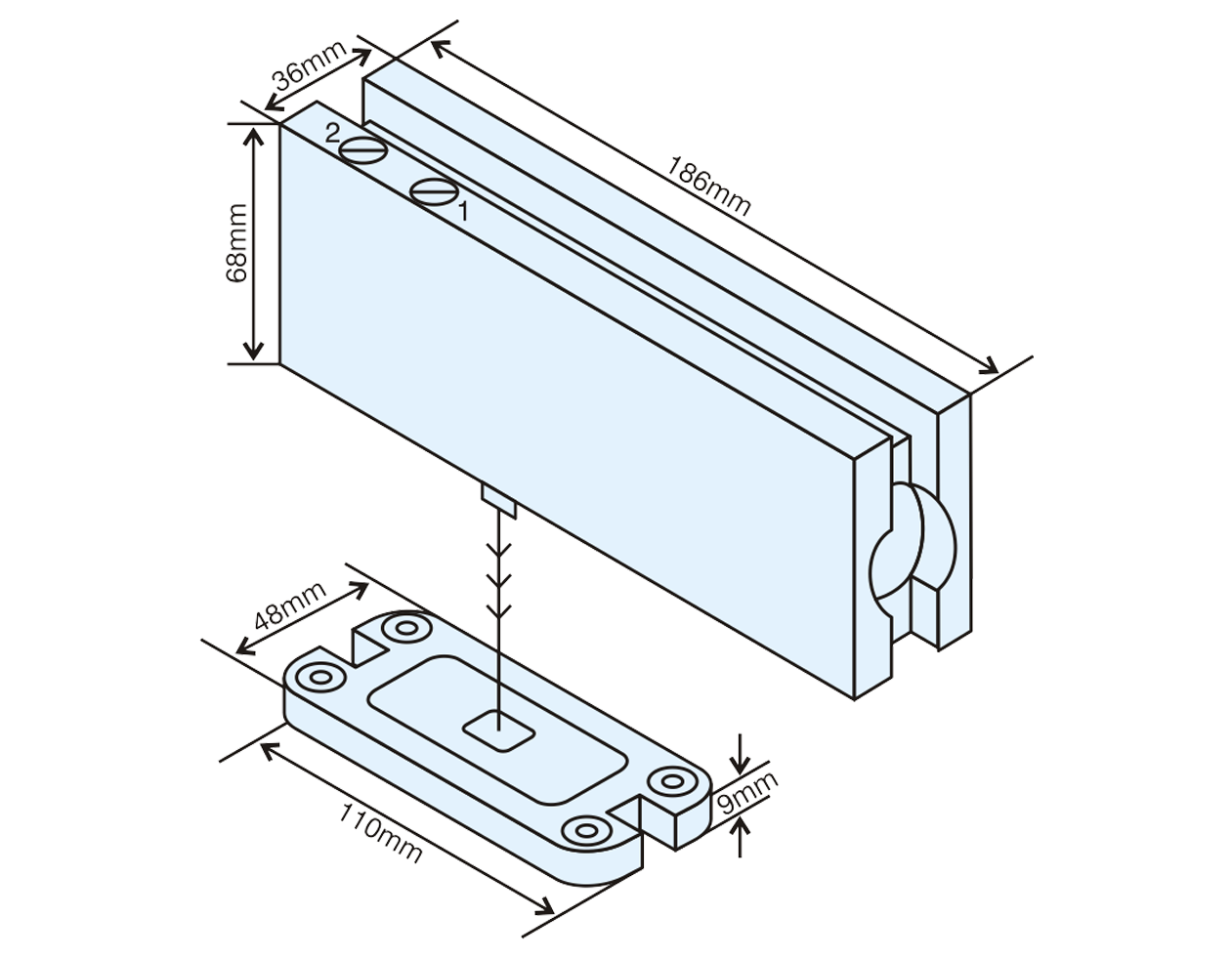

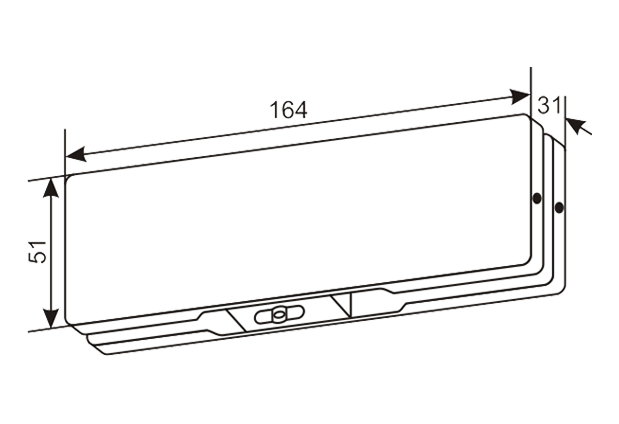

Bottom Patch (BPF 01)
Applications :
- Secure on to Bottom of the door Leaf to accept the spindle of BTX Floor Springs.
- Available in 20 PCS. Set
Specifications :
- With SS 304 cover of 1mm thickness.
- Ensures that the cover is secure in its place.
- It is used for 8 - 10mm. glasses.
- Finish : SSS
- Available in Matte & Glossy Finish
- Material : Stainless Steel SS 304
- Item Code : BPF - 01

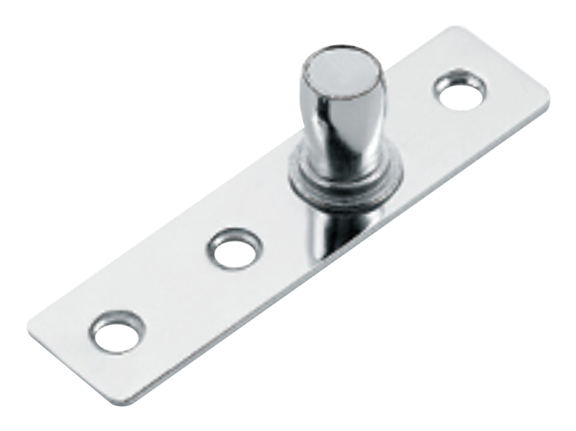

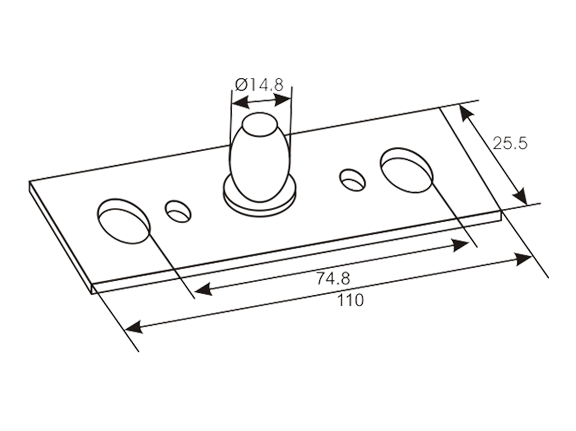

SMALL L PATCH (BPF - 6606)
Applications :
- Top Pivot.
- Available in 50 PCS. Set
Specifications :
- Top Pivot with 14.8mm.
- With resistant.
- Suitable with top patch BPF - 02.
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 6606
Small Patch
Applications :
- Secure on to the bottom of the Door Leaf ti accept the spindle of BTX Floor Springs.
- Available in 20 PCS. Set
Specifications :
- Over Panel Side Panel Connecting Panel.
- With SS 304 cover of 1mm thickness.
- Cover secure with L - key.
- Ensure that the cover is secure in its place.
- It is used for 8mm to 10mm glasses.
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 09

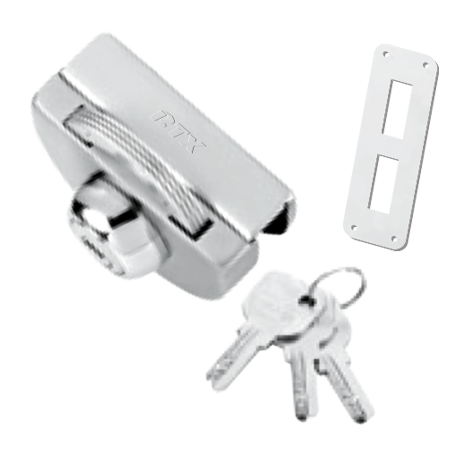

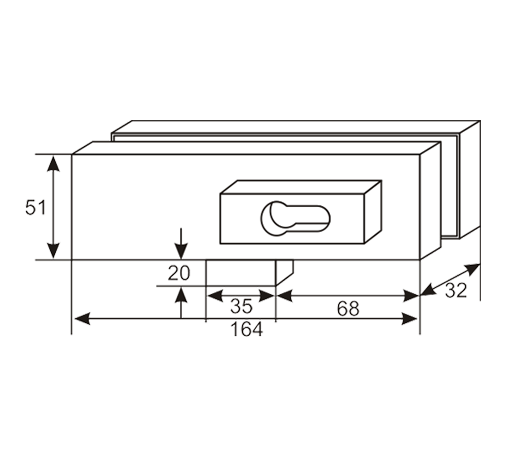

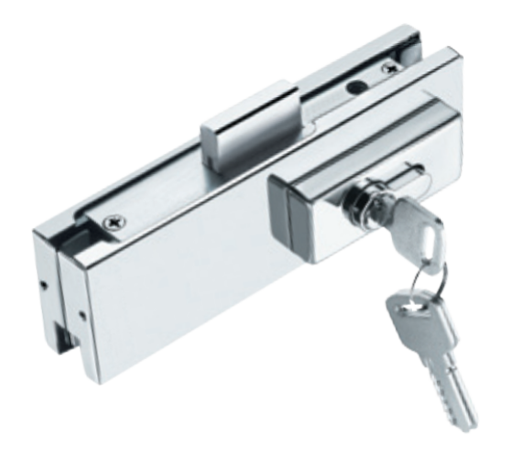

Lock Patch (BPF - 05)
Applications :
- To lock the Double Doors at Bottom.
Specifications :
- Centre Patch Lock and Strike Box.
- With a euro profile cylinder and strike box.
- Bolt projection of 15mm (single throw) four security keys.
- With SS 304 cover of 1mm thickness.
- Cover secured with L - Key.
- Ensures that the cover is secure in its place.
- It is used for 8 - 10mm glasses.
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 05

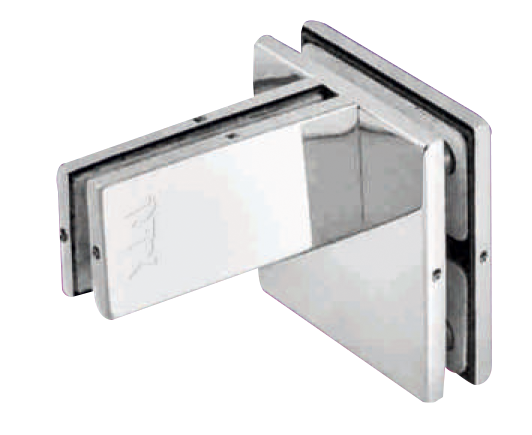

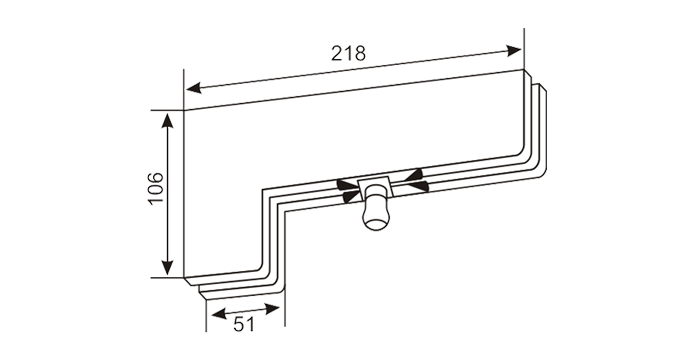

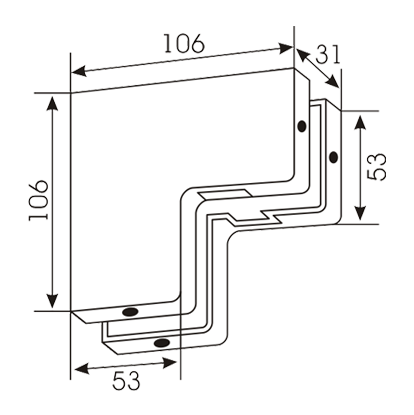

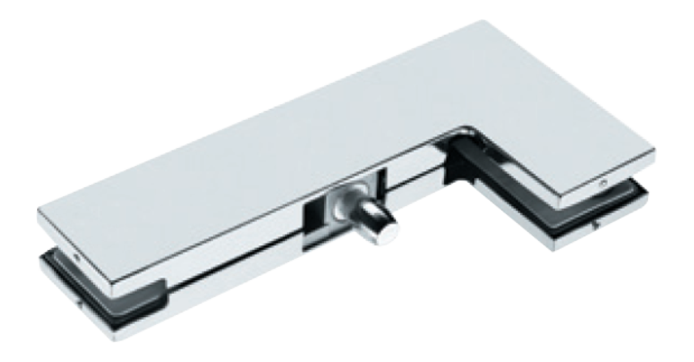

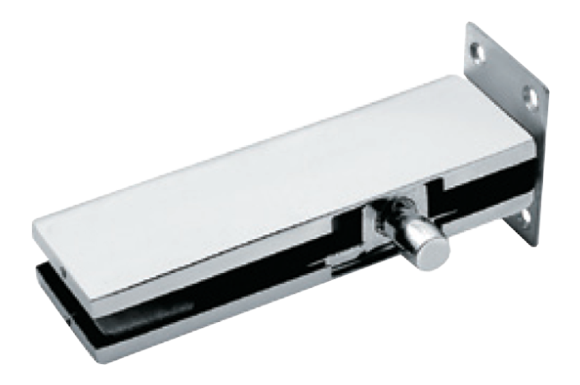

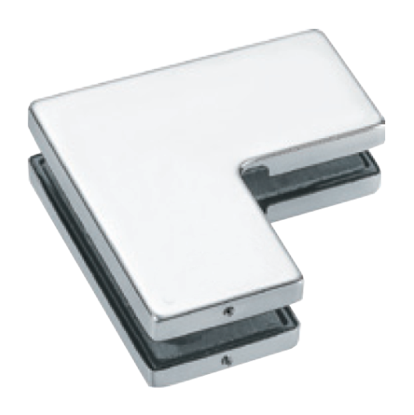

L Corner Patch (BPF-04)
Applications :
- Connects Over Panel and Slide Panel with pivot.
- Available in 20 PCS. Set
Specifications :
- Over Panel Side Panel Connecting Panel.
- With SS 304 Cover 1mm thickness.
- Cover secured with L-Key.
- Ensures that the cover is secure in its place.
- Pivot pin of 15mm diameter
- Adjustable pivot point 55/65mm.
- It is used for 8mm to 10mm glasses
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 04

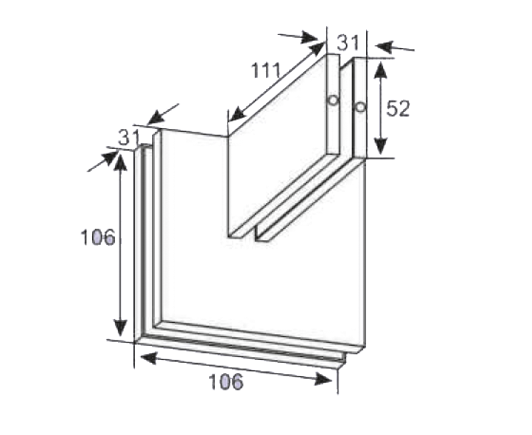

Top Corner / Over Panel Patch (BPF - 14)
Applications :
- To secure Over Panel with the Wall with a Pivot of 15mm Diameter.
- Available in 20 PCS. Set
Specifications :
- With SS 304 cover of 1mm thickness
- Cover secure with L - Key.
- Ensures that the cover is secure in its place
- It is used for 8mm to 10mm Glass.
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 14
Top Junction Patch (BPF - 20)
Applications :
- For Integrating a Maximum of Four Numbers of Fixed Glasses.
Specifications :
- Quadraple Connector.
- With SS 304 cover of 1mm thickness.
- Cover secure with L - key.
- Ensure that the cover is secure in its place.
- It is used for 8mm to 10mm glasses.
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 20
Top Junction Patch FITTING WITH FIN (BPF - 18)
Applications :
- Integrating four Glasses and connecting with fin.
Specifications :
- Quadraple Connector with fin.
- With SS 304 cover of 1mm thickness.
- Cover secure with L - key.
- Ensure that the cover is secure in its place.
- It is used for 8mm to 10mm glasses.
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 18

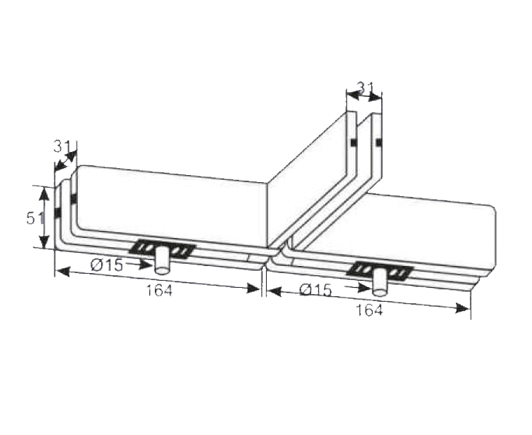

Double OBER PANEL Patch FITTING WITH FIN (BPF - 21)
Applications :
- For back to back doors with pivot pins, installed on to over panel.
Specifications :
- With pivot pin of 15mm diameter.
- Connecting fin with the over panel.
- With SS 304 cover of 1mm thickness.
- Cover secure with L - key.
- Ensure that the cover is secure in its place.
- It is used for 8mm to 10mm glasses.
- Finish : SSS
- Material : Stainless Steel SS 304
- Item Code : BPF - 21

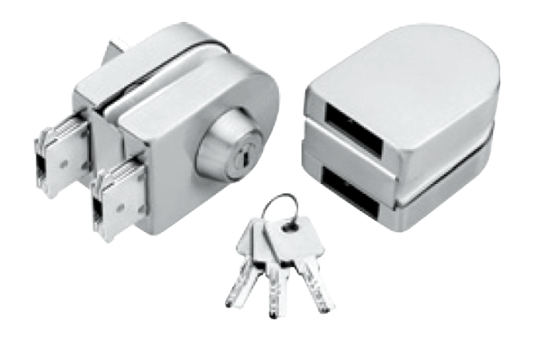

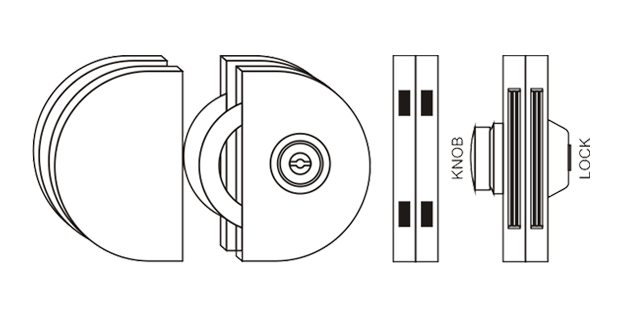

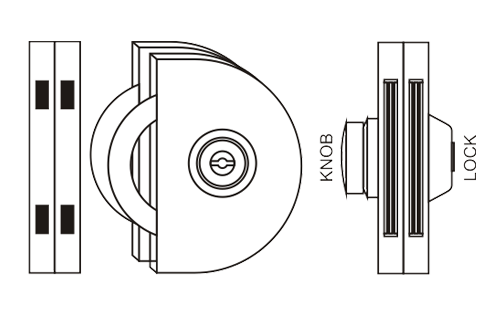

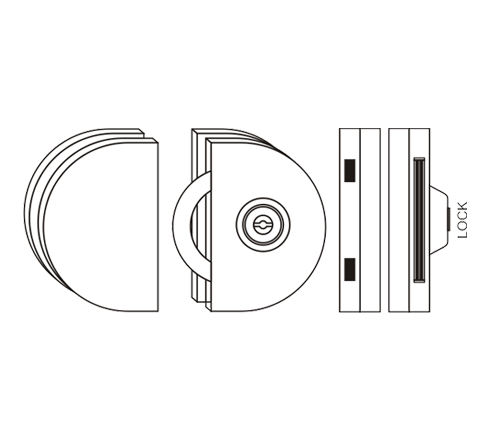

Glass to Glass Centre Lock (BDL-128A)
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Double side door lock (One side key one side knob).
- Suitable for 10 / 12mm. glass.
- Suitable for glass to glass
- Lock Requires no cutout in glass
- Item Code : BDL - 128A

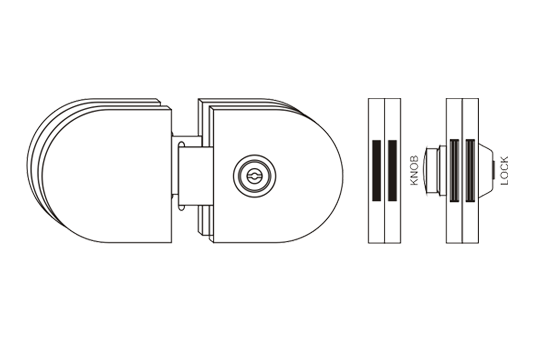

Glass to Glass Centre Lock (BDL-126A)
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Double side door lock (One side key one side knob).
- Suitable for 10 / 12mm. glass.
- Suitable for glass to glass
- Lock Requires no cutout in glass
- Item Code : BDL - 126A
Glass to Glass Centre Lock (BDL-118A)
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Double side door lock (One side key only).
- Suitable for 10 / 12mm. glass.
- Suitable for glass to glass
- Lock Requires no cutout in glass
- Item Code : BDL - 118A

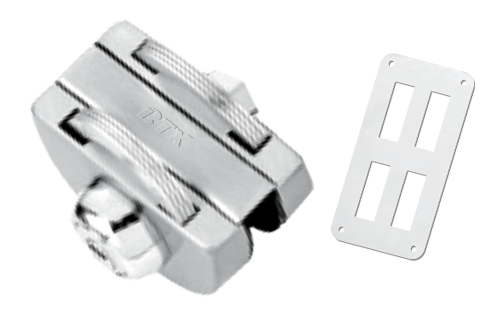

Glass to Glass Centre Lock (BDL-116A)
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Suitable for 10 / 12mm. glass.
- Suitable for glass to glass
- Lock Requires no cutout in glass
- Item Code : BDL - 116A

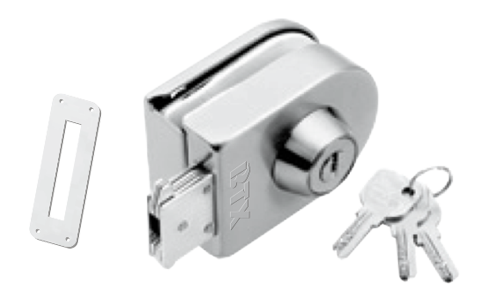

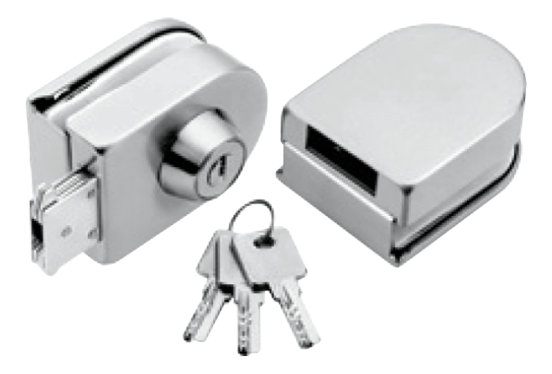

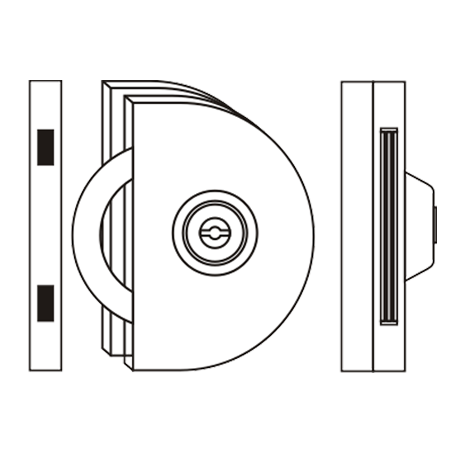

Wall to Glass Centre Lock (BDL-128B)
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Single side door lock (One side key one side knob).
- Suitable for 10 / 12mm. glass.
- Suitable for glass wall / fix Structure
- Lock Requires no cutout in glass
- Item Code : BDL - 128B
Wall to Glass Centre Lock
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Suitable for 10 / 12mm. glass.
- Suitable for glass wall / fix Structure
- Lock Requires no cutout in glass
- Item Code : BDL - 126B
Wall to Glass Centre Lock (BDL-118B)
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Single side door lock (One side key only).
- Suitable for 10 / 12mm. glass.
- Suitable for glass wall / fix Structure
- Lock Requires no cutout in glass
- Item Code : BDL - 118B
Wall to Glass Centre Lock
Specifications :
- Finish : Stain Stainless Steel (SSS)
- Suitable for 10 / 12mm. glass.
- Suitable for glass wall / fix Structure
- Lock Requires no cutout in glass
- Item Code : BDL - 116B
Wall to Glass Centre Lock (BDL-136A)
Specifications :
- Finsih : Stain stainless steel (SSS)
- Suitable for 10\12mm glass.
- Suitable for glass to glass
- Lock requires no cutout in glass
- Item Code : BDL - 136A

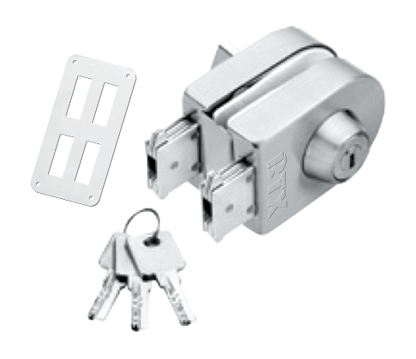

GLASS to Glass Centre Lock (BDL-138B)
Specifications :
- Finsih : Stain stainless steel (SSS)
- Double side door lock (Both side Key)
- Suitable for 10\12mm glass.
- Suitable for glass to glass
- Lock requires no cutout in glass
Item Code : BDL - 138B

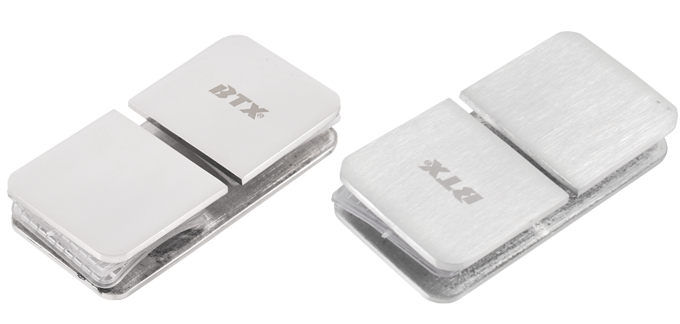

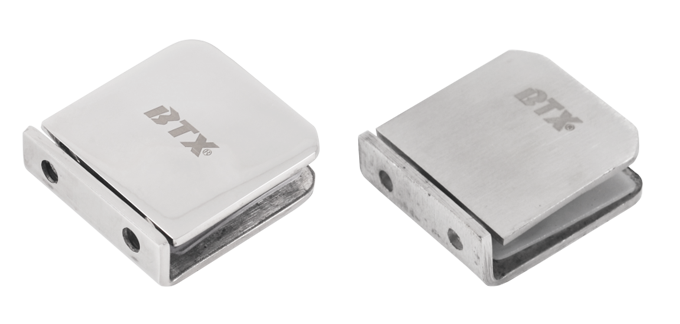

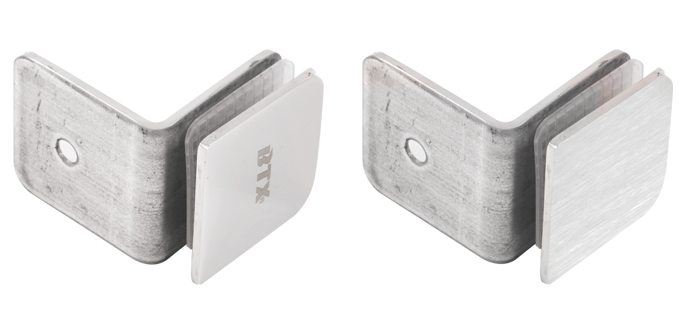

0 Deg. Fixed Glass Clamp
Specifications :
- 0 Deg. Fixed Glass Clamp
- Item Code : BGC - 511 (S) (M)
90 Deg. Single Fixed Glass Clamp
Specifications :
- 90 Deg. Single Fixed Glass Clamp
- Item Code : BGC - 512 (S) (M)
90 Deg. Double Fixed Glass Clamp
Specifications :
- 90 Deg. Double Fixed Glass Clamp
- Item Code : BGC - 513 (S) (M)
180 Deg. Double Fixed Glass Clamp
Specifications :
- 180 Deg. Double Fixed Glass Clamp
- Item Code : BGC - 517 (S) (M)

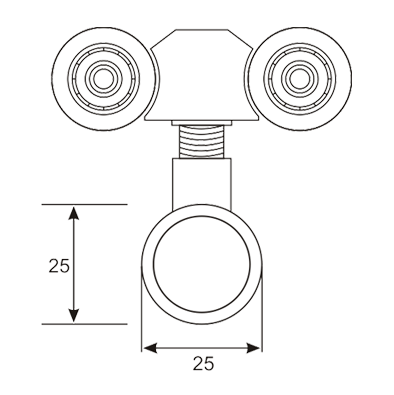

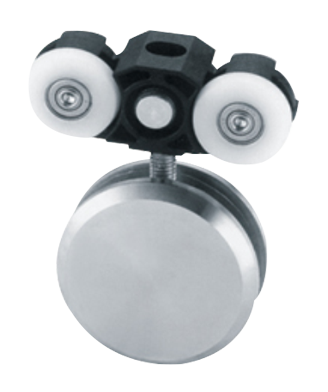

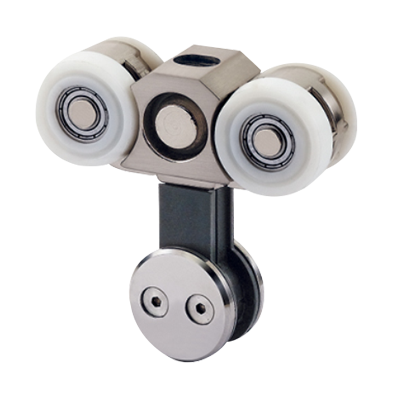

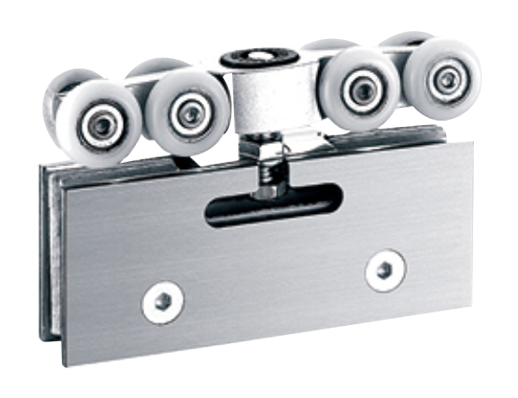

Sliding Door Roller (BDF - 5007)
Specifications :
- Roller Assembly
- Heavy Duty sliding door roller
- Suitable for 80 Kg. door weight per pair.
- Suitable for 10mm to 12mm glass.
- Metal Body with PVC Wheel
- Material Used : Stainless Steel
- Finish : SSS
- Item Code : BDF - 5007
Sliding Door Roller (BDF - 5002)
Specifications :
- Heavy Duty sliding door roller
- Suitable for 100 Kg. door weight per pair.
- Suitable for 10mm to 12mm glass.
- Metal Body with PVC Wheel
- Material Used : Stainless Steel
- Finish : SSS
- Item Code : BDF - 5002
Sliding Door Roller (BDF - 5005)
Specifications :
- Roller for Glass Door
- Heavy Duty sliding door roller
- Suitable for 60 Kg. door weight per pair.
- Metal Body with PVC Wheel
- Material Used : Stainless Steel
- Finish : SSS
- Item Code : BDF - 5005

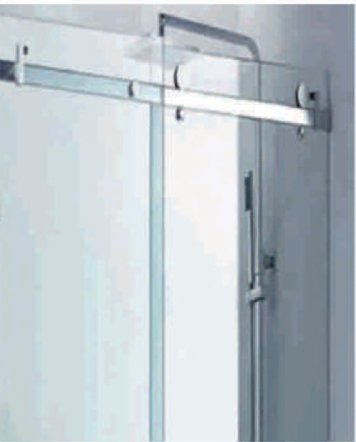

Shower Sliding Set BSG - A01-1(M)

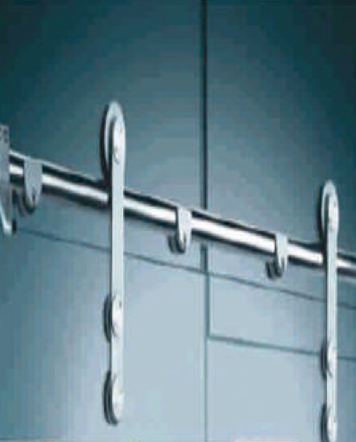

Office Sliding Set BDF - 5008 (S)

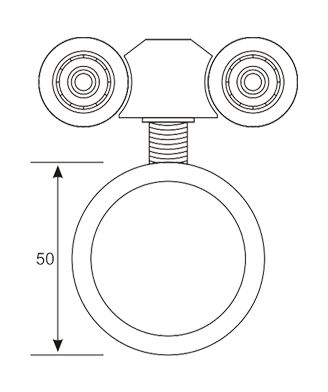

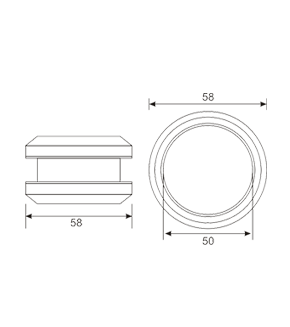

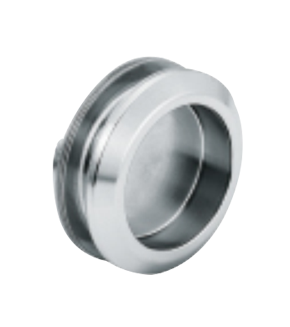

Sliding DOOR Handle (BSG - A01 - 7)
Specifications :
- Good smooth finish.
- Glass hole dia 50mm.
- Material : Stainless Steel
- Finish : SSS
- Item Code : BSG - A01 - 7
Shower Bracket Support Clamp (BDF - SB - 02)
Specifications :
- Material - Brass.
- Item Code : BDF - SB - 02
Shower Bracket Wall Clamp (BDF - SB - 01)
Specifications :
- Material - Brass.
- Item Code : BDF - SB - 01

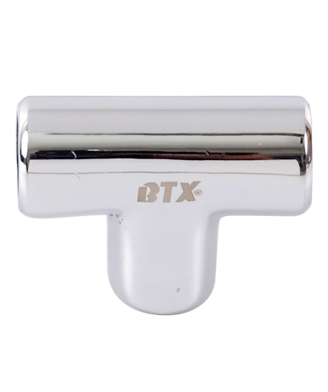

Shower Bracket Clamp for (Two Way Connecting RoD) (BDF - SB - 04)
Specifications :
- Material - Brass.
- Item Code : BDF - SB - 04
Shower Bracket End Clamp (BDF - SB - 03)
Specifications :
- Material - Brass.
- Item Code : BDF - SB - 03
Shower Bracket Clamp (Three Way Connecting Rod) (BDF - SB - 05)
- Material : Brass
- Item Code : BDF - SB - 05

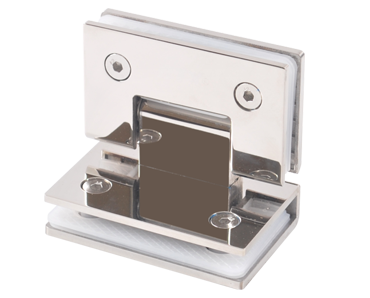

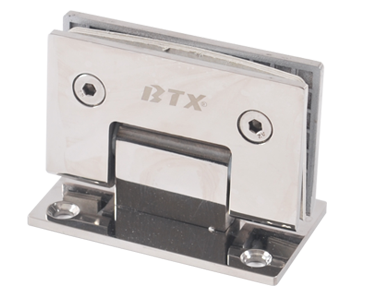

90 deg. Double Side Shower Hinge (BSH - 522)
Specifications :
- Wall to Glass Shower Hinge
- Material : (M)-1SS304 (Z)-Zinc
- Item Code : BSH - 522

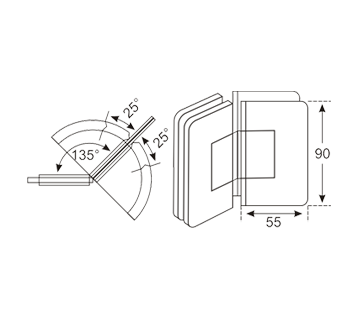

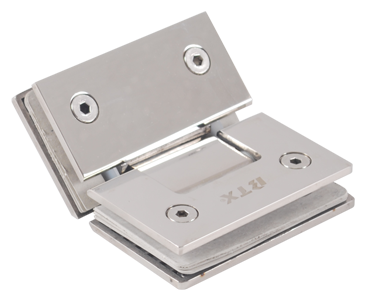

135 deg. Shower Hinge (BSH - 524)
Specifications :
- Glass to Glass Hinge 135
- Material : (M)-1SS304 (Z)-Zinc
- Item Code : BSH - 524
180 deg. Shower Hinge (BSH - 525)
Specifications :
- Glass to Glass Hinge 180
- Material : (M)-1SS304 (Z)-Zinc
- Item Code : BSH - 525
90 deg. Double Clamp Shower Hinge (BSH - 526)
Specifications :
- Glass to Glass Hinge 90
- Material : (M)-1SS304 (Z)-Zinc
- Item Code : BSH - 526

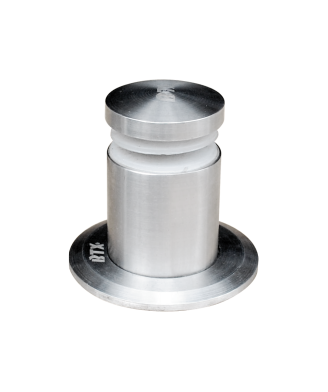

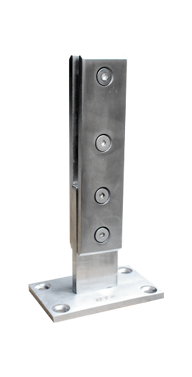

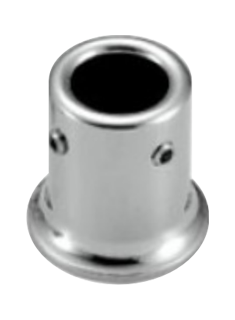

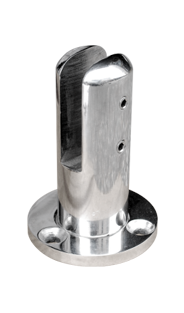

Railing Piller (BDF - Bl - 01)
Specifications :
- Railing Piller with Matt Finish
- Size : 6" & 9"
- Item Code : BDF - BL - 01
Railing Piller (BDF - BL - 02)
Specifications :
- Railing Piller with Matt Finish
- Size : 6" & 9"
- Item Code : BDF - BL - 02
Railing Support Clamp (BDF - BL - 03)
Specifications :
- Item Code : BDF - Bl - 03
Railing stud (BDF - BL-04)
Specifications :
- Item Code : BDF - BL-04

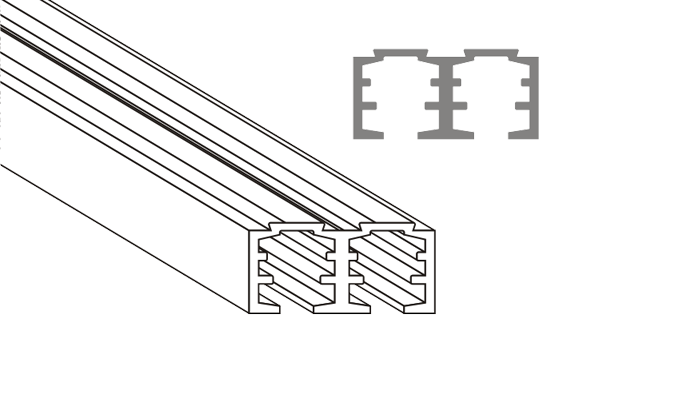

Sliding Track Profile (BDF - 9137)
Specifications :
- Length : 10ft & 13ft.
- Item Code : BDF - 9137
Sliding Track Profile (BDF - 9139)
Specifications :
- Length : 10ft & 13ft.
- Item Code : BDF - 9139

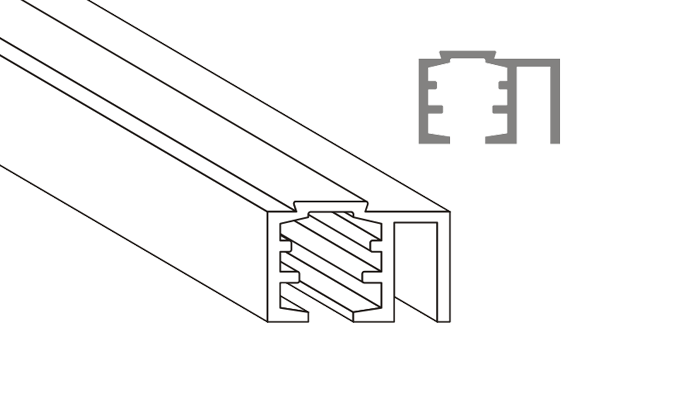

Sliding Track PROFILE (BDF - 9138)
Specifications :
- Length : 10ft & 13ft.
- Item Code : BDF - 9138
SGLASS SealING PROFILE (BDL - GP - 01)
Specifications :
- Central 180° Weather Seal
- It used between fix panel & Door Panel
- Seal acts also as Door Stop
- Suitable Product for 8, 10 and 12mm Glass
- Item Code : BDL - GP - 01 (All sizes in mm)

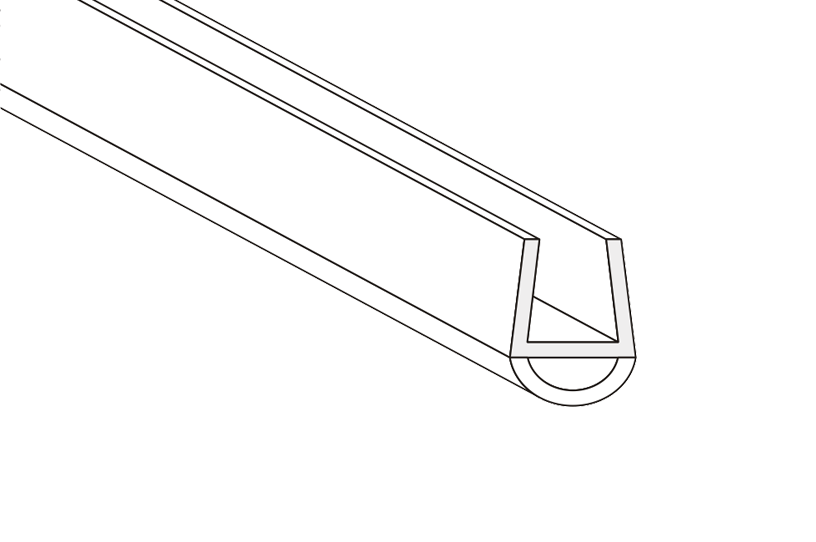

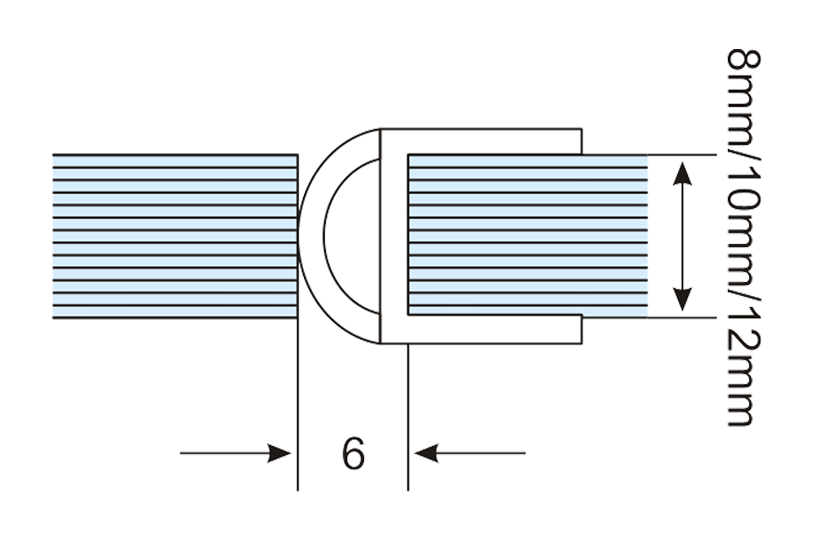

SGLASS SealING PROFILE (BDL - GP - 03)
pecifications :
- Central 180° Weather Seal
- Suitable Product for 8, 10 and 12mm Glass
- Item Code : BDL - GP - 03 (All sizes in mm)

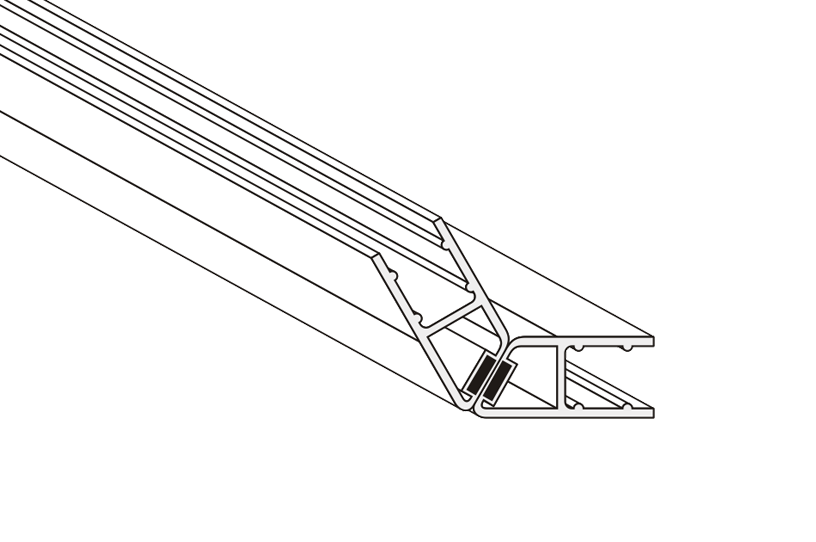

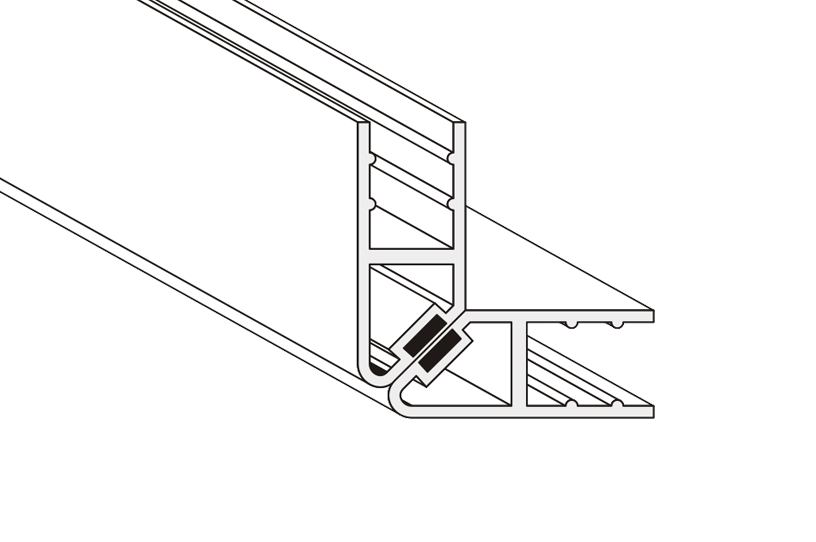

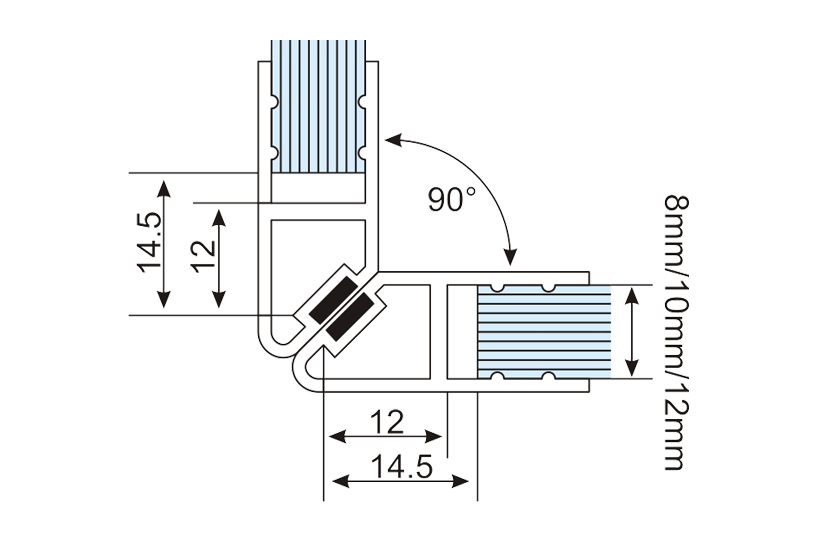

Magnetic Seal Profile (BDL - GP - 07 )
pecifications :
- Magnetic Seal for 90°
- Connection Transparent
- Suitable Product for 8, 10 and 12mm Glass
- Supplied in Paris
- Item Code : BDL - GP - 07 (All sizes in mm)

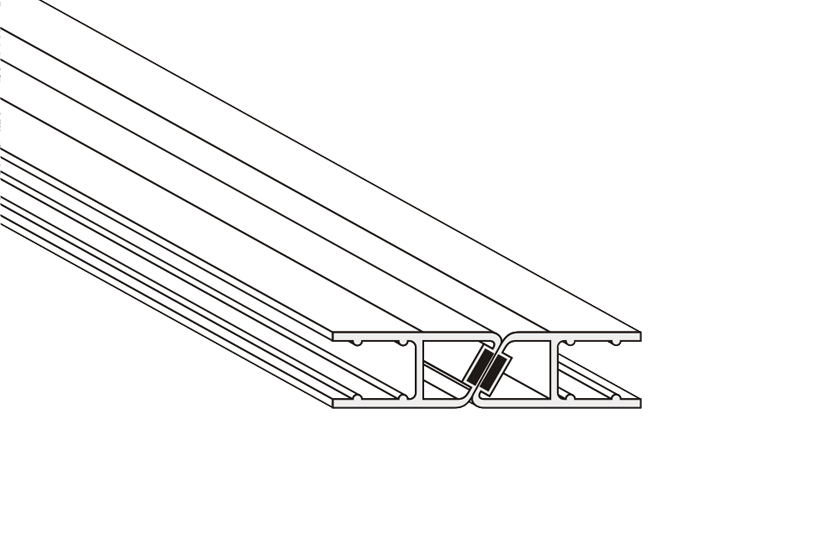

Magnetic Seal Profile (BDL - GP - 08 )
pecifications :
- Magnetic Seal for 90°
- Connection Transparent
- Suitable Product for 8, 10 and 12mm Glass
- Supplied in Paris
- Item Code : BDL - GP - 08 (All sizes in mm)
Magnetic Seal Profile (BDL - GP - 09 )
pecifications :
- Magnetic Seal for 90°
- Connection Transparent
- Suitable Product for 8, 10 and 12mm Glass
- Supplied in Paris
- Item Code : BDL - GP - 09 (All sizes in mm)

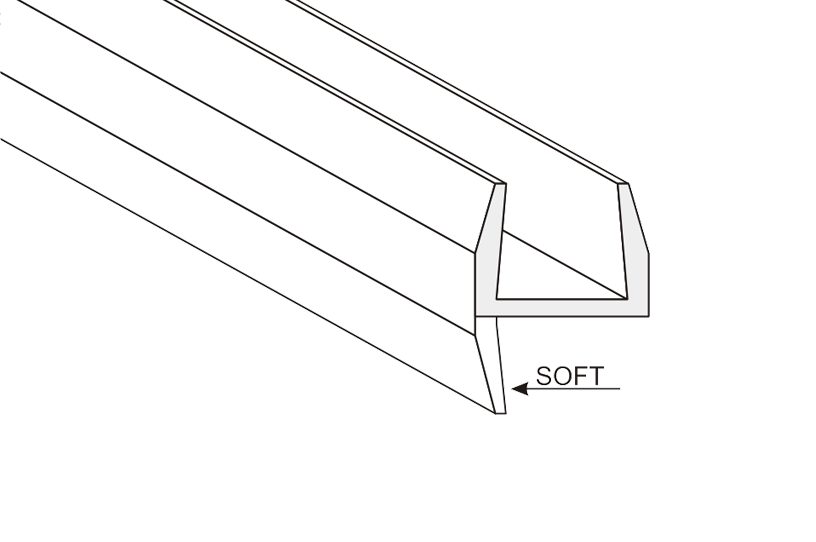

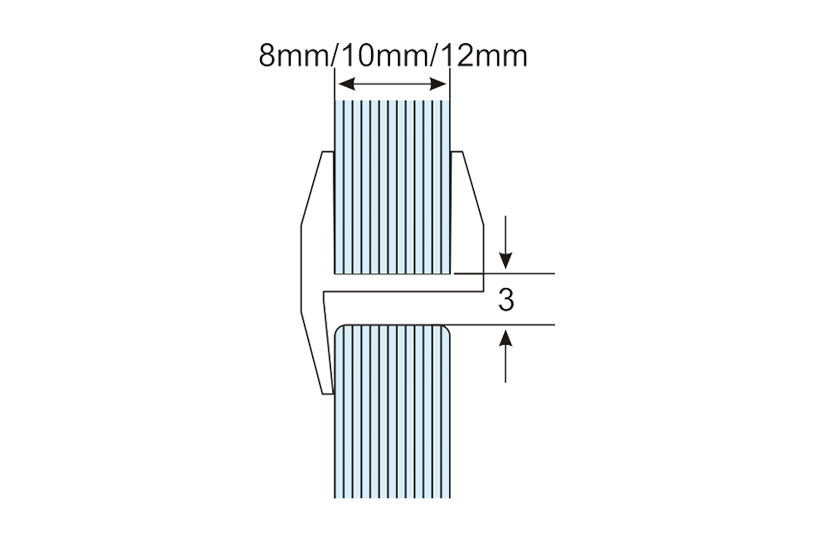

Seal Profile (BDL - GP - 10)
pecifications :
- Item Code : BDL - GP - 10 (All sizes in mm)
